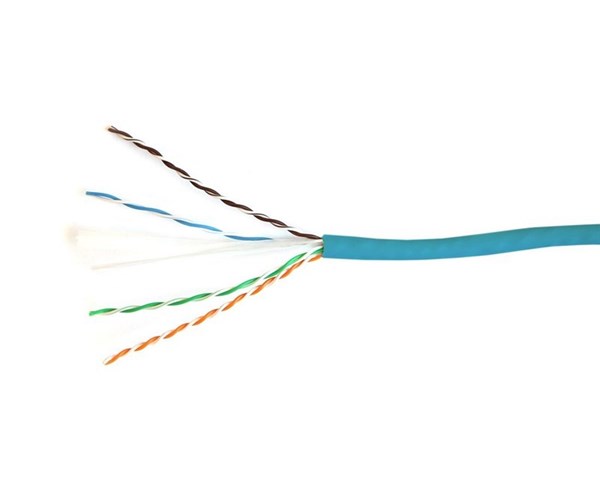

The CAT6 cable box or Category 6 U/UTP (Unshielded twisted pairs) cable, commonly referred to as Cat6 or Cat-6 LAN cable, is used in a horizontal or vertical configuration (Backbone), constitutes the base of a very high bit rate V.D.I. (Voice-Data-Image) network. The performance of this cable exceeds the current standards and its use with WBT/HypaConnect connectors ensures conformity with Class E channel. This Cat6 cable is used for transmission of digital and analogue voice, data and video signals.

This cable is used for transmission of digital and analogue voice, Data and video signals. It can transmit

ISDN
ETHERNET 10 Base T - Ethernet
TOKEN RING 4/16 Mbits
ETHERNET 100 Base Tx, 100 Base T4 – Fast Ethernet
ETHERNET 1000 Base T – Gigabit Ethernet
10G ethernet up to 55m
100 VG - AnyLAN
TP - PMD/TP- DDI
ATM 155, 622Mbits/s and 1,2Gbits/s
IEEE 802.3af – Power Over Ethernet

• 305m box
• Specially designed speed reel box for easy unspooling and deployment of cables
• LSZH
• Colour – blue
• AWG23
• Unshielded
• Exceeds ISO/IEC 11801 Ed.2.2 and ANSI/TIA 568-C.2 performance
• ACMA compliant - RCM
• Complies with AS/CA S008:2010
