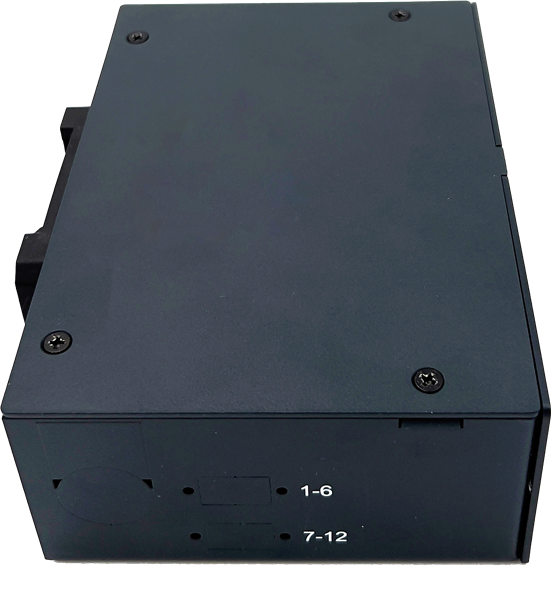

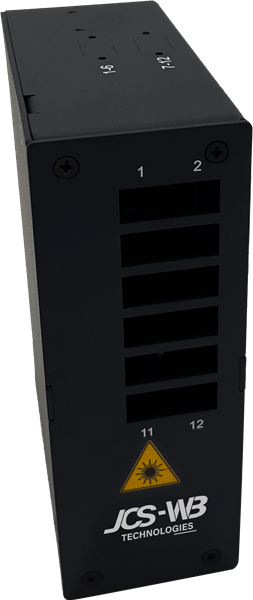

JCS Technologies Compact Modular DIN rail mountable fibre optic enclosures support the use of various cable types.

JCS-CDM-12-SC.MPO are suitable for patching or housing direct termination of 1S2SC or 24LC cores; or splicing of up to 12 single fibre cores (24 with additional purchase of splice cassette). It can also accommodate 2xMPO connectors at the top and bottom.

SC Simplex / LC Duplex adapters are front panel mounted.

Enclosures can be joined with knock-out between to double termination option.


• Modular construction expandable to higher capacity
• DIN rail mount via rear bracket attachment
• Supplied with 1x20mm cable glands tie down point, internal fibre clips and DIN rail clip
• Screw fit front panel supports 12x SC/LCD ports
• 1x Top and 1x bottom cable entry knock outs (20mm)
• 2xMPO knock outs at top and bottom
• 1x12f splice trays included
• Suitable for various unterminated and preterminated cables
• Rodent Proof
• Supplied with compact splice cassette and splice protector sleeves

.....................................................
Mini DIN Rail FOBOT with 12 Fibre Capacity (SC or SCA Simplex) OR 24 Fibre Capacity (LC or LCA Duplex)

The Mini-DIN Rail FOBOT is a versatile and efficient solution for space-sensitive commercial and Industrial installations. It supports DIN rail Mounting and can be installed in Meter Boxes or Industrial Computing setups alongside PLC installation. With a sturdy metal housing, this unit can support up to 12 fibre cores when using SC or SCA Simplex couplers or 24 fibre cores when using LC or LCA Duplex couplers.
FEATURES

Compatible with DIN rail or wall mount installation

Supports 12 SC or SCA Simplex or 24 LC or LCA Duplex cores (Flangeles couplers required, not included)

Knockouts for top or bottom cable entry
Includes fiber optic splice tray

Rodent-resistant design

Suitable for pre-terminated or spliced installations

Works with both loose tube and riser cable

Details

Dimensions: 155mm x 55.5mm x 110mm

Material: Black powder-coated steel

Accessories included: Cable gland, 2 cable guides (adhesive-backed), 2 cable ties, DIN rail clip, 2 laser warning stickers, and a secure fibre optic splice cassette
